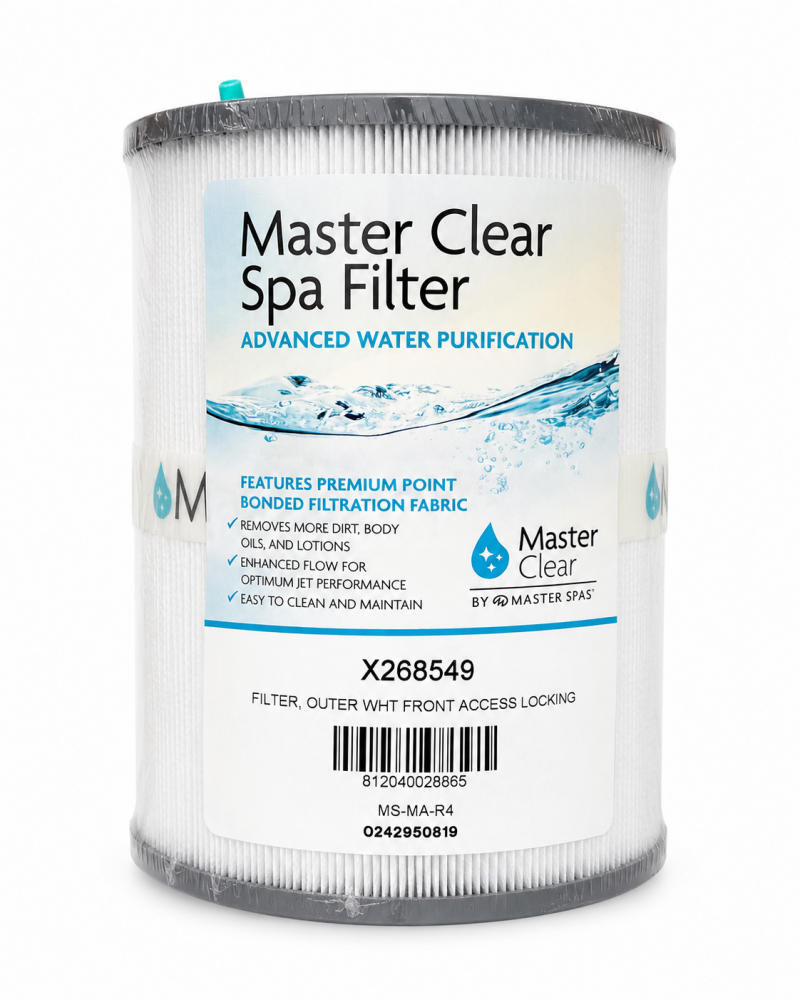

Master Spas X268549 EcoPur® Outer Filter (PMA-R4) – H2X & Michael Phelps Swim Spas

Description

The genuine OEM Master Spas X268549 is the outer mechanical filter used with the EcoPur® Charge filtration system on select H2X and Michael Phelps Signature Swim Spas. Designed to surround the X268532 EcoPur® Charge mineral cartridge, it captures dirt, oils, and debris while maintaining exceptional water flow for cleaner, healthier water. It is used on most H2X and Michael Phelps swim spas manufactured from 2017–2024.

Specifications

Manufacturer SKU X268549
Pleatco Part Number PMA-R4
Filter Type EcoPur® Outer Filter
Filtration Area 35 sq. ft.
Outside Diameter 6.0 in.
Body Length 7.25 in.
Overall Length 9.0 in.
Top Style Orange EcoPur® receptacle
Bottom Style 1⅝” SAE threaded connection
Filter Media Premium polyester
Weight Approximately 1.8 lbs
UPC 090164001388
OEM / Aftermarket Genuine OEM Master Spas
Replacement Interval Rinse monthly, deep clean every 3–4 months, replace every 12 months

Compatible With

H2X Trainer Series 2024 and older
Trainer 12, Trainer 14, Trainer 15, Trainer 15 Deep, Trainer 17, Trainer 18, Trainer 18D, Trainer 19, Trainer 19 Deep
H2X Challenger Series 2024 and older
Challenger 15D, Challenger 18D, Challenger 18D Pro, Challenger 19D
H2X Cross Trainer Series 2024 and older
Cross Trainer, Cross Trainer 2, Cross Trainer SJ
H2X Momentum Series 2024 and older
Momentum 50, Momentum 50 Deep, Momentum 80, Momentum 80 Deep
Michael Phelps Signature Swim Spas 2024 and older
Signature, Force, Force Deep, Impact, Momentum 50, Momentum 80

Cross Reference Numbers

Master Spas X268549
Pleatco PMA-R4
Master Spas (Previous) X268536
Master Spas (Previous) X268045
Unicel 6CH-940
UPC 090164001388
Must be used with: X268532 EcoPur® Charge Mineral Cartridge.

Product Summary

Master Spas X268549 EcoPur® Outer Filter (PMA-R4)
Maintain superior water quality with the genuine OEM Master Spas X268549 EcoPur® Outer Filter. Engineered for select H2X and Michael Phelps Signature Swim Spas, this premium outer filter surrounds the X268532 EcoPur® Charge mineral cartridge to deliver outstanding mechanical filtration while maintaining optimal water circulation. Built with high-quality polyester filter media and a durable threaded connection, the X268549 effectively removes dirt, body oils, and fine debris to help keep your swim spa clean and performing at its best. Rinse monthly, clean regularly, and replace annually for maximum filtration efficiency.
